How to Install Foil Insulation on Walls in 10 Simple Steps

Foil insulation for walls, also known as reflective foil insulation or radiant barrier for walls, is an excellent alternative for keeping your house warm and energy efficient. It protects against outside influences, prevents heat from escaping, and aids in sustaining a year-round pleasant interior temperature. Knowing how to install foil insulation on walls will help reduce energy expenses and increase comfort for your sweet home.

Early insulation helps shield the inside from rain, allowing construction to proceed uninterrupted. If you are considering installing foil insulation yourself, the following is the simplest process to help you.

How to Install Foil Insulation on Walls



Step 1: Prepare Your Walls

The first step of how to install foil insulation on walls procedure is to identify where you want to apply insulation.

• Measuring the walls where you intend to utilize foil insulation can help you determine how much you need.
• Preparing the surface. Ensure the walls are clean and free of any dirt. Take care of any current problems, such as moisture or structural issues.
• Choosing the right foil insulation for your walls according to its reflective qualities and thickness.

Prepare Your Walls



Step 2: Calculate the Desired U-Value

• Use an online U-value calculator. Find out how much thermal effectiveness your insulation needs based on the insulation you use and the location you reside in.
• Verify that the U-value you determined complies with the recommended standards for the highest level of energy efficiency.



Step 3: Install Timber Battens

• Fix treated timber battens by attaching them vertically to the walls.
• Secure the frame. Ensure the strips provide a strong insulation framework and help avoid compression.
• Select the correct batten size. This ensures the right amount of air gap for effective insulation.

Install Timber Battens



Step 4: Install Counter Battens (Optional)

• Add horizontal counter battens. For optimal insulation, place them above the vertical battens.
• Fix perpendicular to vertical battens. This creates additional air space to raise the insulation's effectiveness.



Step 5: Fit Foil Insulation

• Roll out the foil insulation. To ensure full covering, begin at the base of the wall and work your way upward.

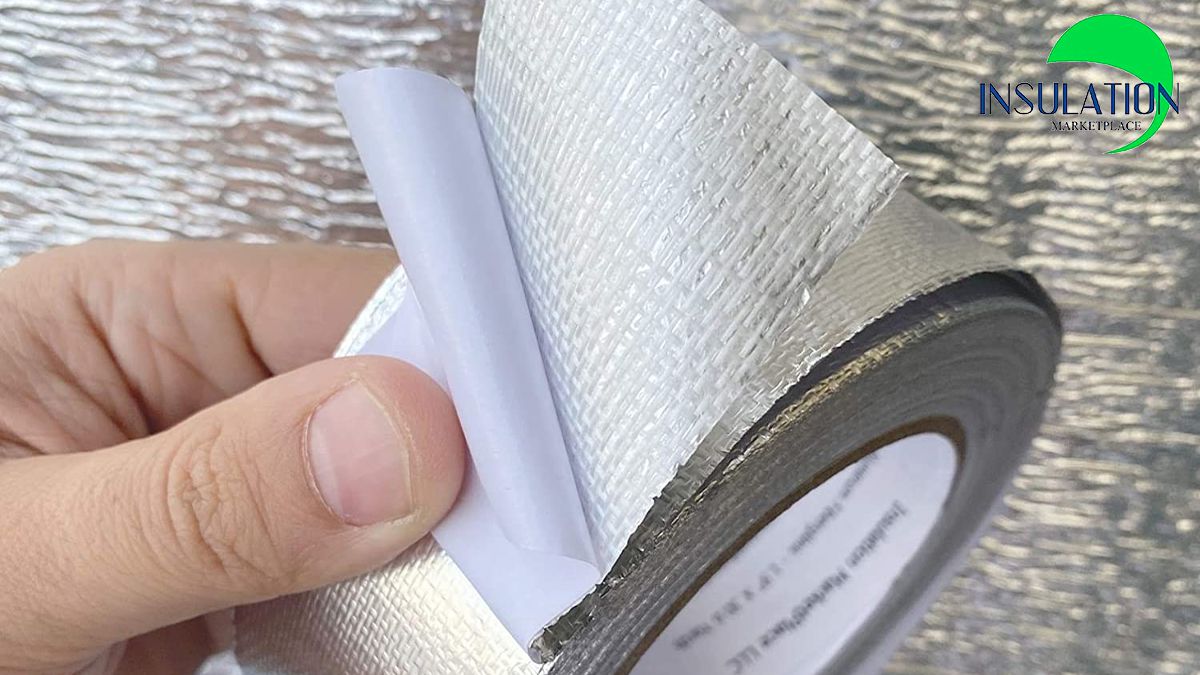

• Use Thermaseal foil joining tape to secure overlaps and maintain the vapor control layer.



Step 6: Staple Foil Insulation

• Use a heavy-duty staple gun to tightly staple the foil insulation to the wooden battens and provide a secure attachment.
• Use tape to create a tight seal and increase the insulating efficiency of joints, edges, and rips.



Step 7: Install Insulated Plasterboard (Optional)

• If you want to add insulated plasterboards, follow the manufacturer's instructions and stack them on top of the foil insulation.
• When choosing your insulation alternatives, consider the existence of vapor control layers. You can choose not to use foil-backed plasterboard if your foil insulation already has a vapor control layer.



Step 8: Check for Gaps and Overlaps

• Look for any gaps or overlaps in the foil insulation that can reduce how well heat is retained.
• Trim any excess overlaps for a perfect fit, then seal gaps with high-quality foil tape.

Check for Gaps and Overlaps



Step 9: Seal Joints and Edges

• Thoroughly examine any foil insulation connections and edges to ensure they are properly sealed.
• Use quality foil tape to strengthen connections, especially in corners and seams, to keep the vapor barrier intact and prevent air leakage.



Step 10: Finish the Wall

Once foil insulation has been installed, the wall can be decorated with paint, wallpaper, or any other material. This gives your room a personalized touch while also giving the insulation more protection.



Materials and Tools Needed

Having the right supplies and equipment on hand is essential for the how to install foil insulation on walls process. Below is a list of everything you will need:

• Foil Insulation: Choose a quality product such as SmartFOIL - Radiant Barrier in walls or SmartSHIELD plus - XPE Foam + Glue
• Thermaseal Foil Joining Tape: To seal overlaps and ensure the integrity of the vapor barrier
• Heavy-Duty Staple Gun: Needed for fastening the foil insulation securely to the timber battens
• Treated Timber Battens: To provide a sturdy frame for the insulation and help maintain air gaps
• Counter Battens (optional): For extra thermal benefits, consider installing counter battens horizontally over the vertical ones
• Fixing Materials: For optimal performance, use materials recommended by the insulation manufacturer
• Foil-Backed Plasterboard or Insulated Plasterboard: To add an extra layer of insulation
• Rigid PIR Insulation: Depending on your specific insulation needs
• Heavy Duty Reflective Foil Tape: Ensure all joints are fully taped for maximum effectiveness.

Materials and Tools Needed



Maintenance and Longevity

Maintaining enough insulation is key to protecting your home from outside influences and keeping you comfortable all year round. Implementing the best maintenance practices for how to install foil insulation on walls helps control energy expenses and improves the performance of your HVAC system.

The key factors determining insulation longevity are the insulation used and the installation quality. However, how long the insulation lasts is also influenced by the insulation location, moisture exposure, and insect activity. For instance, bug infestations or ice jams might lower its effectiveness.

Regular inspections are essential for keeping your house relaxing and efficient. It is critical to keep an eye out for these signs for upgraded or replaced insulation:

• The upper level in your home feels cold in the winter and overheated in the summer.
• Your home is older than twenty years.
• Your energy expenses are going up.
• The insulation in your home appears to be in poor condition.
• There are pest issues in your house.
• Almost no insulation is visible.
• Your home's insulation does not meet DOE (Department of Energy) requirements.



Install Foil Insulation on Walls

Having the proper insulation is essential for keeping your house energy-efficient and pleasant. Knowning how to install foil insulation on walls will reduce heat loss and improve interior temperatures. It's also important to upgrade and maintain your insulation regularly to keep it working its best.
