How to Insulate a Metal Building

Insulation is necessary for a metal building to be more useful, comfortable, and energy-efficient. Although metal structures are strong and weatherproof, they frequently have trouble controlling temperature and moisture. Proper insulation is essential, as it reduces energy costs, improves indoor air quality, and stabilizes the internal environment.

We'll show you how to insulate a metal building to improve its value and boost energy efficiency all year long.

Why You Need to Insulate a Metal Building

Although metal structures are favored for their durability and strength, they bring particular insulating issues. If not properly insulated, your metal building may face some problems like moisture, temperature swings, and higher energy expenses.

Here are reasons why insulating metal buildings becomes not just a choice but a necessity.

Optimize Energy Efficiency

Insulation for metal buildings is essential to optimizing energy efficiency. Because of its high conductivity, heat and cold may easily pass through metal, putting more strain on HVAC systems to maintain appropriate temperatures.

High-quality insulation in metal buildings may significantly reduce energy use, utility costs, and environmental sustainability for both business and residential owners.

Improve Indoor Air Quality

Effective insulation plays a key role in enhancing indoor air quality. It functions as a moisture barrier, preventing mold formation and preventing serious health concerns. By controlling humidity levels, insulation lowers the risk of respiratory conditions like allergies and asthma and creates a healthier interior environment.

Maintain Consistent Temperature Control

Insulation offers better temperature control in metal construction. It efficiently maintains heat in cold weather and helps to make the interior comfortable and cool in hotter climates. For companies that rely on steady conditions to run effectively, this consistent temperature is essential for maintaining comfortable and usable premises all year round.

Enhance the Value of Your Metal Building

In addition to increasing functioning, insulation raises the property's total worth. A metal structure with adequate insulation conveys a commitment to comfort and energy efficiency, which increases its appeal to prospective purchasers.

How to Insulate a Metal Building

Step 1: Preparation

When installing foam core reflective insulation like SmartSHIELD or double bubble insulation for metal buildings, wrap the insulation vertically for 60” on-center (OC) frames or horizontally for other configurations.

You can use double-sided SmartTAPE or self-tapping screws with washers for temporary placement.

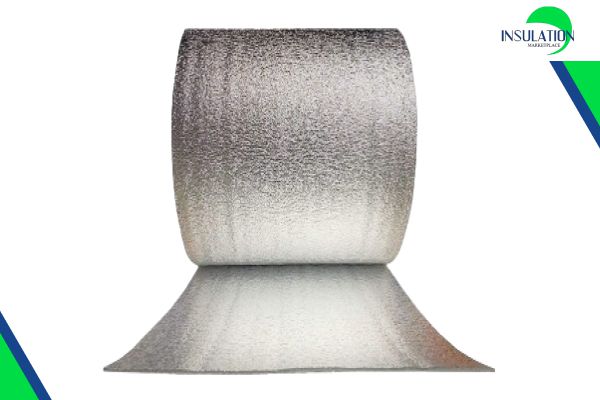

Use SmartSHIELD for Better Results

You can choose either two options below to position the hat channels:

• Option 1: Spread the SmartSHIELD metal building insulation rolls and install them first, then add hat channels for a clean interior appearance. Ensure the foil side faces outward and place hat channels directly on top of the foil surface of the SmartSHIELD. This creates a thermal break and a visually appealing finish.
• Option 2: Install hat channels for easier alignment, then place SmartSHIELD over them. This method makes the hat channels less visible from the outside but may make them more noticeable inside.

Step 2: Wrap the Frame

Start with the first cavity, ensuring the foil side faces outward, and the white side faces inward.

Use Heavy Duty Reflective Foil Tape or screw to secure the insulation temporarily. This keeps the insulation in place while you proceed with the installation.

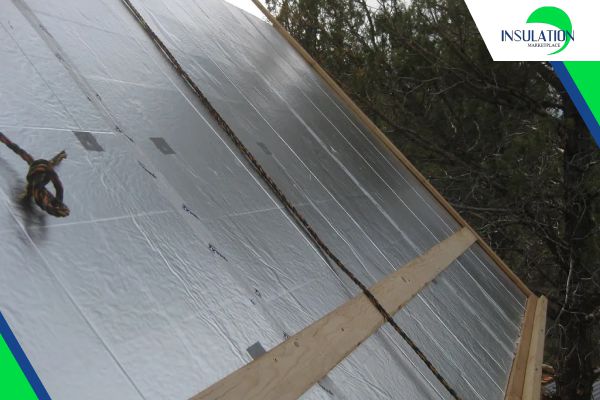

Secure the Insulation With Tape

Step 3: Overlap Runs

When installing the next section of SmartSHIELD insulation or bubble insulation for metal buildings, make sure to overlap the edges of the first run by at least 6 inches. This helps prevent air and moisture from getting in.

Use double-sided SmartTAPE to hold the top of the second section in place until you secure it with the third section.

Then, use screws and washers to secure the overlaps tightly.

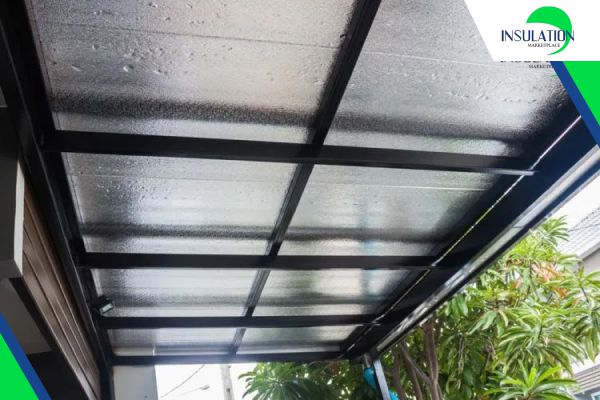

Insulate Rooflines

Step 4: Cover All Walls and Rooflines

For horizontal installation, start at the roof’s edge and work toward the ridge.

The best way to insulate a metal building is to overlap SmartSHIELD insulation by 6 inches at the ridge and extend it 3-4 inches over the roof edges.

Use screws or tape to secure the insulation to the frame, making sure it's tightly fitted for the best performance.

Step 5: Taping the Seams (Optional)

Taping seams is optional but helps reduce moisture and gives a cleaner finish. This will minimize the risk of condensation forming at the seams.

Taping Seams for Moisture Reduction and a Cleaner Finish. Source: Flicker

Step 6: Add Hat Channels or Spacers

Use metal hat channels or other spacers to create the necessary airspace for maximum reflectivity.

Place hat channels 2 to 4 feet apart, depending on the cladding requirements.

This airspace is crucial for improving the efficiency of the radiant barrier for metal buildings.

Step 7: Install Exterior Cladding

Finally, secure your exterior metal, wood, or siding to the hat channels using screws recommended by the cladding manufacturer.

Ensure that all edges are properly sealed to prevent air leaks, and complete the installation with trim pieces for doors, windows, and corners.

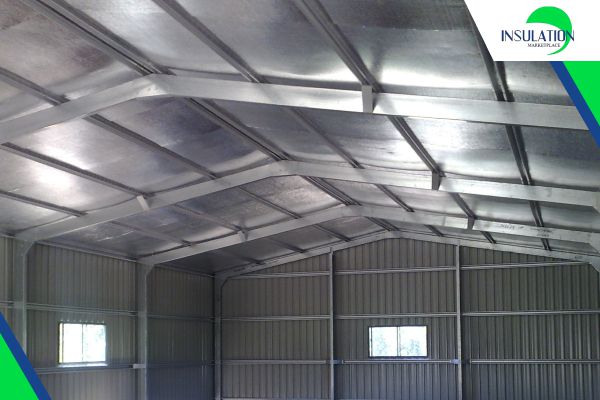

Install Roof Cladding

Benefits of SmartSHIELD in Metal Buildings

SmartSHIELD insulation has several advantages that are particularly intended for metal structures. Here are the primary advantages of using roll insulation for metal buildings:

• Thermal break product: Effectively prevents conduction, reducing heat transfer between the interior and exterior.
• Vapor barrier: Effectively blocks condensation and is resistant to humidity and moisture.
• Reflects 95% of radiant heat: Significantly minimizes heat gain during the summer months, saving significantly on your electricity bill.
• Reduces heat loss in winter: Helps maintain warmth indoors, lowering heating costs.
• Provides continuous R-value: Ensures consistent thermal resistance, enhancing insulation effectiveness.
• Robust system R-value: Offers superior performance compared to conventional materials, improving overall energy efficiency.

Upgrade Your Metal Building with Insulation MarketPlace

Choosing high-quality insulation ensures your metal structure is energy-efficient and pleasant all year.

If you're looking to learn how to insulate a metal building, Insulation MarketPlace offers the perfect solutions. Our premium products, like SmartSHIELD, are designed to tackle the unique challenges of metal structures, making them the best insulation for metal buildings. This investment not only enhances comfort but also reduces energy costs over time.

For more details on our insulation options and to explore our full range of products, visit our store at Insulation MarketPlace.
