SmartSHIELD - 1/4in Premium Foam Core Reflective Insulation Roll

Option :

Quantity :

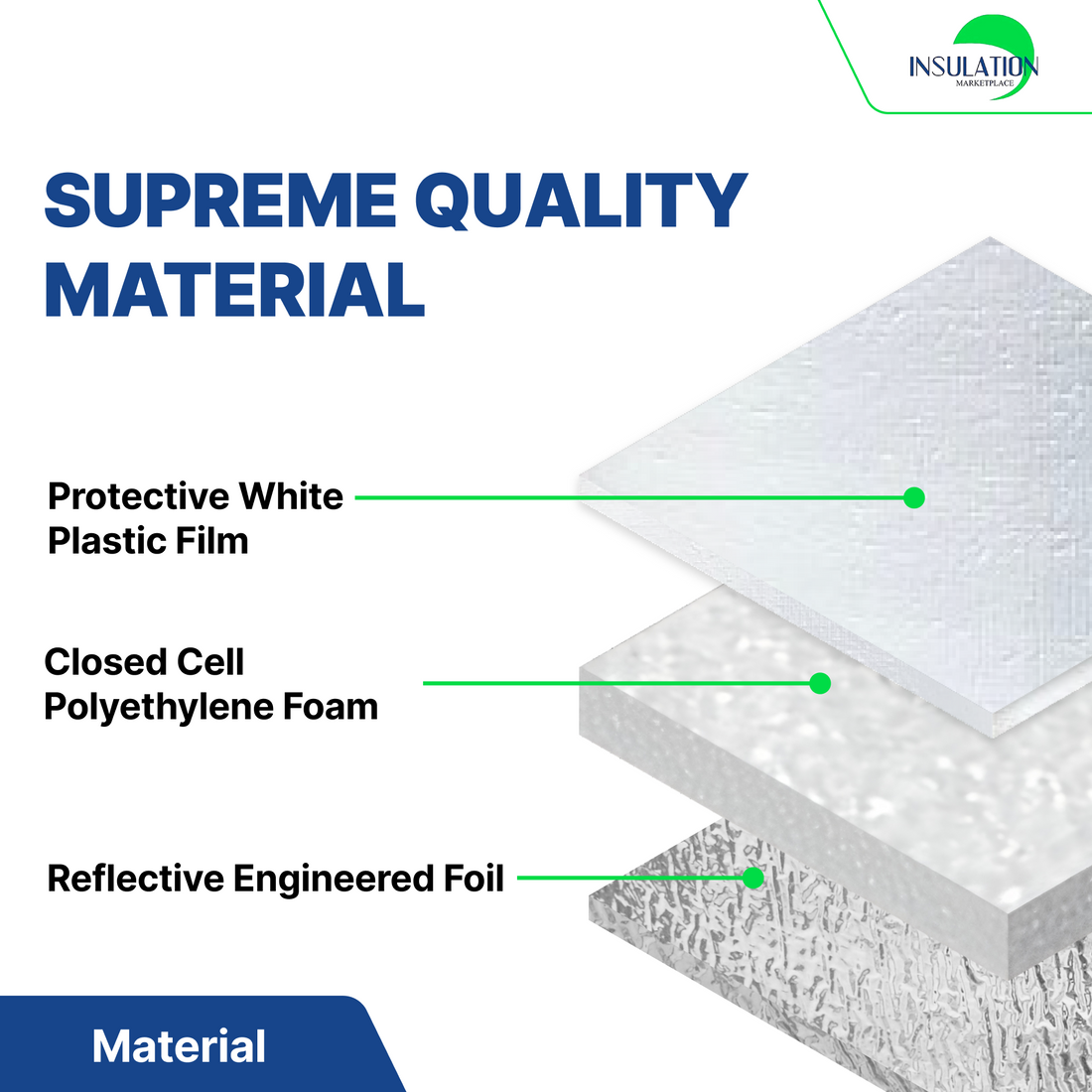

MADE IN USA - NEW ENERGY SAVING PRODUCT. PREMIUM QUALITY FOAM CORE REFLECTIVE INSULATION ROLL / RADIANT BARRIER, COMMERCIAL GRADE!!! EXTRA THICK - 1/4" FOAM LAYER WITH HEAVY DUTY ENGINEERED FOIL ON ONE SIDE AND WHITE PLASTIC FILM ON ANOTHER. Installing a radiant barrier is the only way to effectively block the transfer of radiant heat. Used as a standalone product in some applications or in conjunction with other types of insulation these reflective foam core foil insulation products are extremely effective. WHERE TO INSULATE? Attics, Ceilings, Walls, Steel Buildings, POLE BARNS, Roofing, Concrete Floor, Radiant Heat in a Concrete Floor, Radiant Heating Under a Wood Floor, Cathedral Ceiling, Water Heater Tank, Radon Barrier, Water Pipe and Air Duct, Reflective Ceiling System, Behind a Hot Water Radiator, Crawl Space, In Ground Swimming Pools, Shed, Fish & Hunting Shelter, Cooling Room, Cold Chamber or Wine Cellar, Concrete Block Wall, Cavity Wall for Metallic Studs in Commercial Buildings, Foundation Wall, Above Ground Swimming Pools, Quanset Hut, House Wrap

See all Reviews

1/4in closed cell polyethylene foam sandwiched between pure aluminum on both sides.Heating and cooling costs are about 60% of the average American Household energy bill. The most effective way to cut these cost is to lower the amount of heat transferred into the home in the summer an out of the home in the winter. Our Radiant Barrier / Reflective Insulation Roll SmartSHIELD is made from double-sided 99% aluminum foil, with closed-cell polyethylene foam. It provides optimal protection by reflecting up to 97% of radiant energy, in addition to resisting conductive and convective heat transfers. Our Radiant Barrier / Reflective Insulation SmartSHIELD is nontoxic and non-carcinogenic and works ideal for hot and cold climates.

DIMENSIONS AVAILABLE:

1/4in x 2ft x 100ft,
1/4in x 4ft x 100ft,
1/4in x 6ft x 50ft.

ADDED VALUES

Radiant Barrier
Vapor Barrier
Sound Barrier
Strong but lightweight
Unaffected by humidity and moisture
Will not lose its performance.
Fire rate Class 1 / Class A
Easy to install and easy to clean
NON TOXIC, WILL NOT IRRITATE SKIN, EYE OR THROAT

INSTALLATION

PHOTOS and VIDEOS

APPLICATIONS

WHERE TO INSULATE?

Attics
Ceilings
Walls
Steel Buildings
POLE BARNS
Roofing
Concrete Floor
Radiant Heat in a Concrete Floor
Radiant Heating Under a Wood Floor
Cathedral Ceiling
Water Heater Tank
Radon Barrier
Water Pipe and Air Duct
Reflective Ceiling System

Behind a Hot Water Radiator
Crawl Space
In Ground Swimming Pools
Shed, Fish & Hunting Shelter
Cooling Room, Cold Chamber or Wine Cellar
Concrete Block Wall
Cavity Wall for Metallic Studs in Commercial Buildings
Foundation Wall
Above Ground Swimming Pools
Quanset Hut
House Wrap

TECHNICAL DATA

TECHNICAL SPECIFICATIONS - SmartSHIELD -1/4in
SmartSHIELD -1/4in Insulation(Double aluminum layer - Fire barrier)Measures and tolerances of the standard product
THICKNESS = 1/4in
Technical Characteristics of the Product
CHARACTERISTICS	VALUE	STANDARD
FOAM CELL STRUCTURE	Closed	-
AVERAGE WEIGHT PER m2	0,242 Kg/m2	-
FOAM DENSITY	34-54 Kg/m3	ASTM 1622
PERMEABILITY	Waterproof	Dir. UEAtc
WATER VAPOR PERMEABILITY	0.033g/m2hkPa-0.05perms(gr/ft2hin.hg)	ASTM E-96/IRAM 1735
FLAME INDEX	0	ASTM E-84
SMOKE DEVELOPMENT	15	ASTM E-84
EMMITANCE	0,03	ASTM C-1371-98
FUNGAL RESISTANCE	Resistant/Does't promote fungal growth	ASTM C-1338
DELAMINATION	Doesn't delaminate	ASTM C-1224-99
OPERATING TEMPERATURE	-20°c / 80°c	ASTM C-1258
THERMAL RESISTANCE R-VALUE	A: 15.67; B: 21.10 (ft2.h.°F/Btu)	ASTM C-236

Discover our full range of reflective foam insulation or browse through our 1/4 inch double-sided reflective foam insulation options to find the perfect fit for your project!

SmartSHIELD -1/4in Premium Foam Core Reflective Insulation Roll, White Film/Engineered Foil - Made in USA
