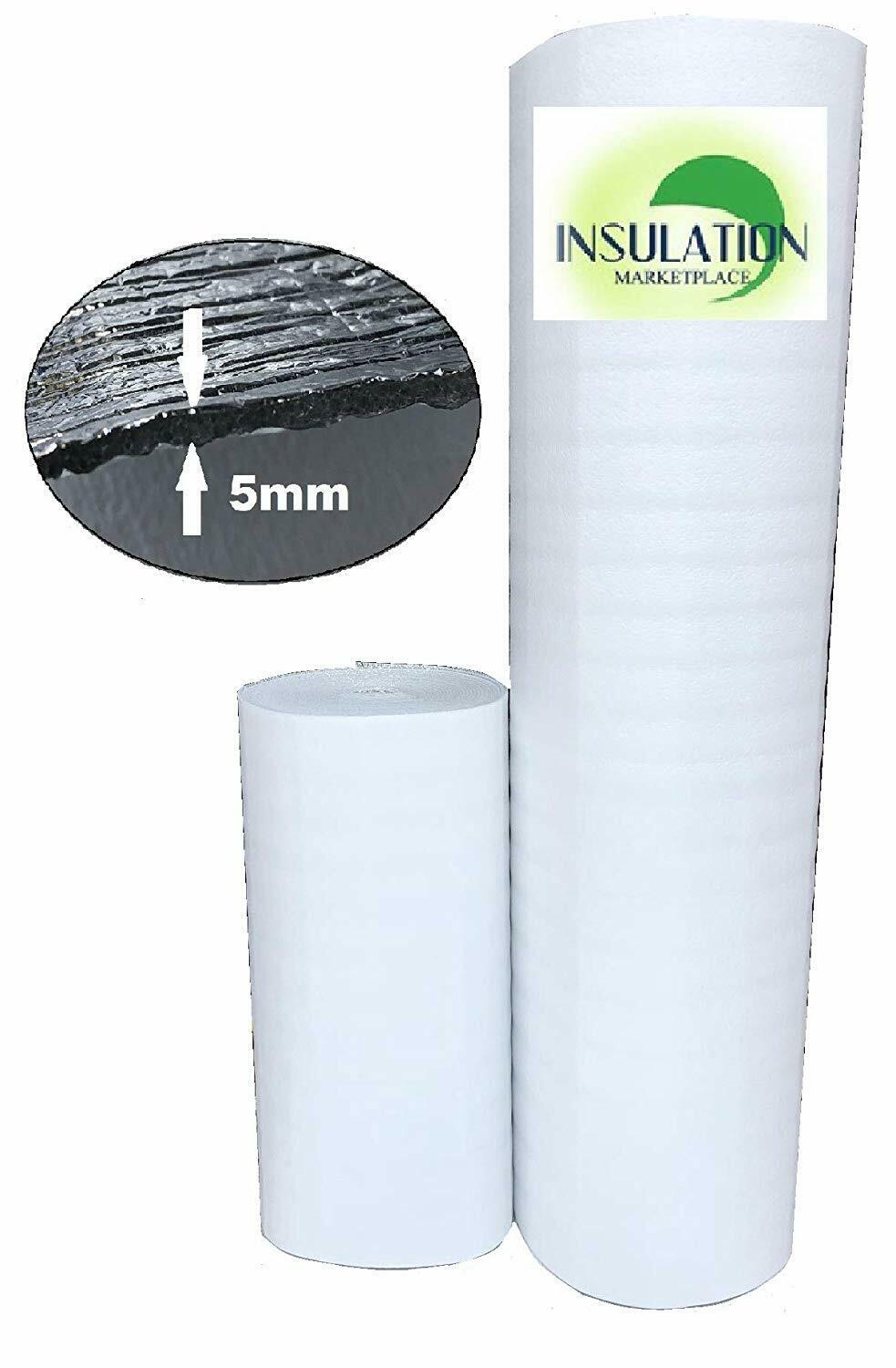

SmartSHIELD -5mm Reflective Insulation roll, Foam Core Radiant Barrier, Commercial Grade - WHITE FILM / ENGINEERED FOIL

Item# SmartSHIELD -5W

Price -

$54.95

Option :

Quantity :
5mm closed cell polyethylene foam sandwiched between highly reflective engineered foil on one side and white plastic film on another. All in one product: Insulation, Radiant Barrier, Vapor Barrier, Sound Barrier. Commercial Grade



5mm closed cell polyethylene foam sandwiched between ENGINEERED FOIL on one side and WHITE FILM on another. Heating and cooling costs are about 60% of the average American Household energy bill. The most effective way to cut these costs is to lower the amount of heat transferred into the home in the summer an out of the home in the winter. Our Radiant Barrier / Reflective Insulation SmartSHIELD is made from highly reflective engineered foil with closed-cell polyethylene foam. This white insulation provides optimal protection by reflecting up to 95% of radiant energy, in addition to resisting conductive and convective heat transfers. Our Radiant Barrier/Reflective Insulation SmartSHIELD is nontoxic and non-carcinogenic and works ideal for hot and cold climates.

DIMENSIONS AVAILABLE:

  • 16" x 10ft, 16" x 25ft, 16" x 50ft,
  • 24" x 10ft, 24" x 25ft, 24" x 50ft,
  • 48" x 10ft, 48" x 25ft, 48" x 50ft, 48" x 100ft,
  • 60" x 50ft,
  • 72" x 50ft.

ADDED VALUES

  • Radiant Barrier
  • Vapor Barrier
  • Sound Barrier
  • Strong but lightweight
  • Unaffected by humidity and moisture
  • Will not lose its performance.
  • Fire rate Class 1 / Class A
  • Easy to install and easy to clean
  • NON TOXIC, WILL NOT IRRITATE SKIN, EYE OR THROAT

APPLICATIONS

WHERE TO INSULATE?

  • Attics
  • Ceilings
  • Walls
  • Steel Buildings
  • POLE BARNS
  • Roofing
  • Concrete Floor
  • Radiant Heat in a Concrete Floor
  • Radiant Heating Under a Wood Floor
  • Cathedral Ceiling
  • Water Heater Tank
  • Radon Barrier
  • Water Pipe and Air Duct
  • Reflective Ceiling System
  • Behind a Hot Water Radiator
  • Crawl Space
  • In Ground Swimming Pools
  • Shed, Fish & Hunting Shelter
  • Cooling Room, Cold Chamber or Wine Cellar
  • Concrete Block Wall
  • Cavity Wall for Metallic Studs in Commercial Buildings
  • Foundation Wall
  • Above Ground Swimming Pools
  • Quanset Hut
  • House Wrap

TECHNICAL DATA

TECHNICAL SPECIFICATIONS - SmartSHIELD -5mm - WHITE FILM / ENGINEERED FOIL
Measures and tolerances of the standard product
THICKNESS = 5mm
Technical Characteristics of the Product
CHARACTERISTICS VALUE STANDARD
FOAM CELL STRUCTURE Closed -
AVERAGE WEIGHT PER m2 0,242 Kg/m2 -
FOAM DENSITY 34-54 Kg/m3 ASTM 1622
PERMEABILITY Waterproof Dir. UEAtc
WATER VAPOR PERMEABILITY 0.033g/m2hkPa-0.05perms(gr/ft2*h*in.hg) ASTM E-96/IRAM 1735
FLAME INDEX 0 ASTM E-84
SMOKE DEVELOPMENT 15 ASTM E-84
EMMITANCE 0,05 ASTM C-1371-98
FUNGAL RESISTANCE Resistant/Does't promote fungal growth ASTM C-1338
DELAMINATION Doesn't delaminate ASTM C-1224-99
OPERATING TEMPERATURE -20°c / 80°c ASTM C-1258
THERMAL RESISTANCE R-VALUE *A: 15.67; *B: 21.10 (ft2.h.°F/Btu) ASTM C-236



Discover our full range of reflective foam insulation or browse through our 5mm perforated reflective foam insulation5mm reflective foam insulation options to find the perfect fit for your project!
